Kewtech EZYPAT

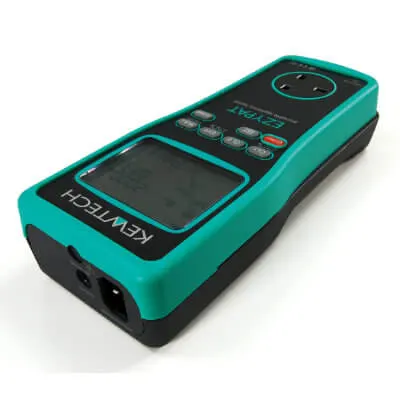

The Ezypat is powered by six standard AA batteries. Kewtech estimate an average 1,400 tests before the batteries will need replacing. From our own experience using the Ezypat during our training courses, the battery life is excellent and this appears to be a reasonable estimate.

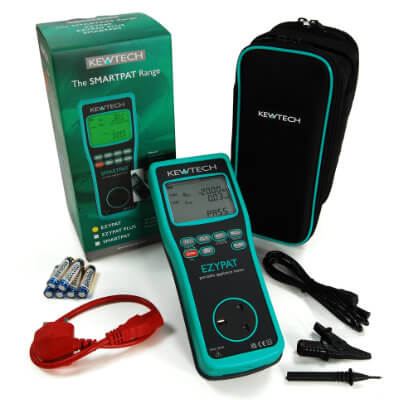

The soft carry case has a main compartment for the tester, and a separate section at the back for storing test leads, labels etc.

The test lead has an interchangeable probe and crocodile clip. The high quality silicone rubber lead is nice and supple and is a generous 2m in length, making it easy to reach around the back of a computer to attach the test clip. Unlike some other manufacturers, Kewtech use a standard double ended 4mm test lead. This means that if you ever need to replace a damaged or lost lead, they are widely available from most electrical suppliers.

The resistance of the test lead can also be ‘Nulled’. The nulling process ensures that the resistance of the test lead does not influence the measured resistance of the equipment under test. The test lead is connected to the earth terminal on the test instrument using the supplied brass pin and then simply press and hold the ‘NULL’ button for 2 seconds.

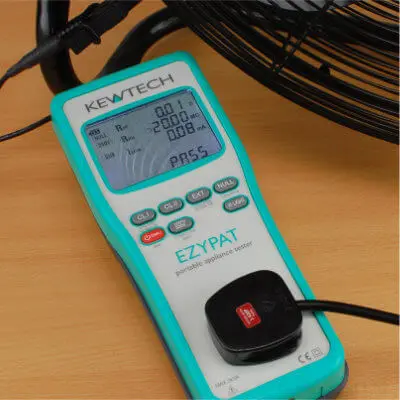

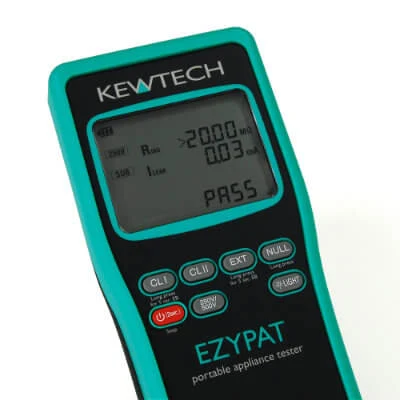

Automatic test sequences for Class I and Class II appliances are started with a single button press. The results are easy to read on a large clear display. The backlit display also illuminates green for a pass and red for a fail. The earth continuity test is carried out at 200mA, so it can be safely used on all equipment without the risk of causing damage to sensitive electronic components. The insulation test can be set to either 500V or 250V. For most equipment, the 500V test should be used, but the 250V test can be used for equipment containing surge protection circuits that would otherwise result in a false fail at 500V. The Class I and Class II test sequences also include a substitute leakage test.

The extension lead test sequence includes a polarity test in addition to the earth continuity and insulation tests. A short red IEC lead is included for testing extension leads. The resistance of the IEC lead can also be nulled.

The Ezypat can be used with the Kewpat app to record the test results. The free to use Kewpat app is available from Google Play or the Apple App Store. The app is specifically designed for use with the Kewtech Ezypat and Smartpat range of testers and is simple and intuitive to use. The test results are manually entered into the app along with the appliance id, description, location, site and customer details. The results can then be exported from the app in a pdf or csv file format.

We use the Kewtech range of PAT testers during our courses. We advise attending the PAT course before purchasing any test equipment. This will give you the opportunity to use the equipment and receive advice from our experienced trainers on the most suitable tester for your specific requirements.
